Details

Turnbuckles

文章内容

2007290347881.jpg              200721516940355.gif

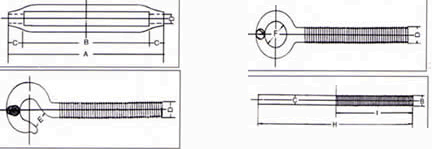

                                             TURNBUCKLES

Nominal
Size(D)

1 Body Only

2 Eye and Eye

3 Hook&Eye

4 Hook&Hook

6 With Stubs

A

B

C

T.L

W/Pce

F

T.L

W/Pce

T.L

W/Pce

E

T.L

W/Pce

H

I(A/2)

G

W/Pce

m/m in
6
8
9
12
16
19
22
25
32

m/m
100
125
150
200
250
300
325
350
400

m/m
78
100
120
164
202
250
269
285
310

m/m
11
12.5
12.5
18
21.5
25
28
32.5
45

Ton
1
1.2
1.5
2
3
4
5
6
8

kg
0.08
0.15
0.17
0.29
0.52
0.85
1.17
1.69
3.51

m/m
10
12
16
20
22
28
33
35
36x70

Ton
0.1
0.2
0.5
2
3
4
5
6
10

kg
0.116
0.22
0.295
0.6
1.07
1.79
2.55
3.8
7.6

Ton
0.04
0.08
0.15
0.35
0.7
1.0
1.5
2.0
3.0

kg
0.114
0.218
0.293
0.585
1.05
1.78
2.58
3.77
7.52

m/m
9
9
11
16
19
20
21
26
34

Ton
0.04
0.08
0.15
0.35
0.7
1.0
1.5
2.0
3.0

kg
0.112
0.215
0.29
0.57
1.03
1.77
2.6
3.73
7.44

m/m
80
100
130
150
180
220
250
270
300

m/m
50
63
75
100
125
150
165
175
200

m/m
5.3
6.9
8.3
11.2
14.2
17.2
20.3
23.3
29

kg
0.112
0.22
0.273
0.51
0.95
1.62
2.34
3.27
6.52
